Benefits
- Available in 3 models in lengths from 9’ to 90’ (2.7 to 27.4 m).
- Standard 16” or 18” (41 or 46 cm) gutters, special sizes available.
- The J-Series stands out for its galvanized construction.
- The B-Series is protected by a durable urethane-painted finish.
- Flat, tip-up or split return (J-Series)
- Replaceable chain troughs (J-Series)
- Flat or drop-out return (B-Series)
- 6'' x 6'' (15 cm x 15 cm) welded main beam (B-Series)
- Safety railings on three sides with a lifeline (B-series)

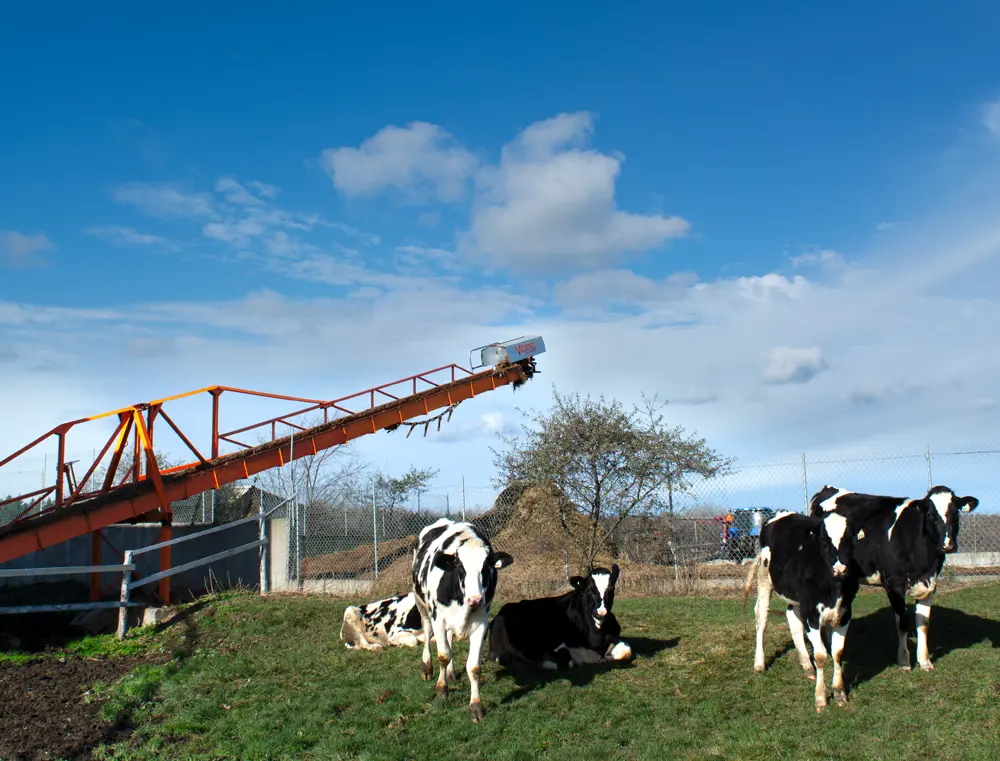

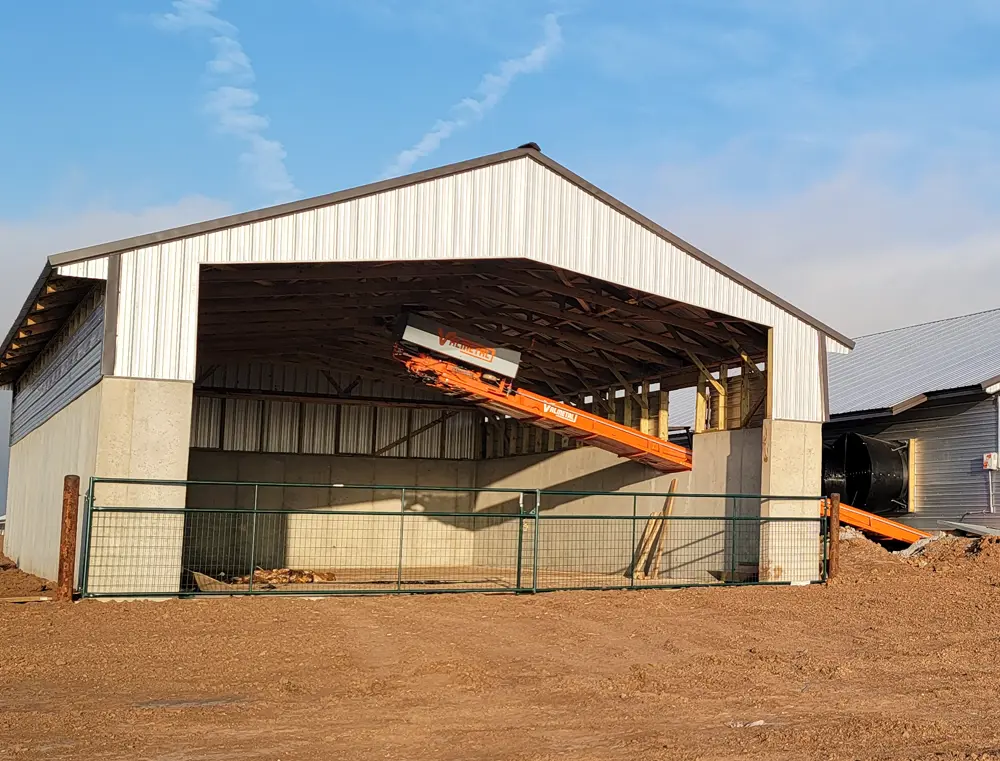

B-Series fixed or swinging elevators
The B-Series elevators range from small fixed-position models to the longest swinging elevators for maximum solid manure storage. The Model 2000 is available in a wide range of lengths, with a support that is either optional or included depending on the model size. The Model 8800 features an articulated design and a progressive truss, providing maximum reach beyond the standard support. The B-Series is compatible with B-15/16 drive units, and adapters are available for other brands.

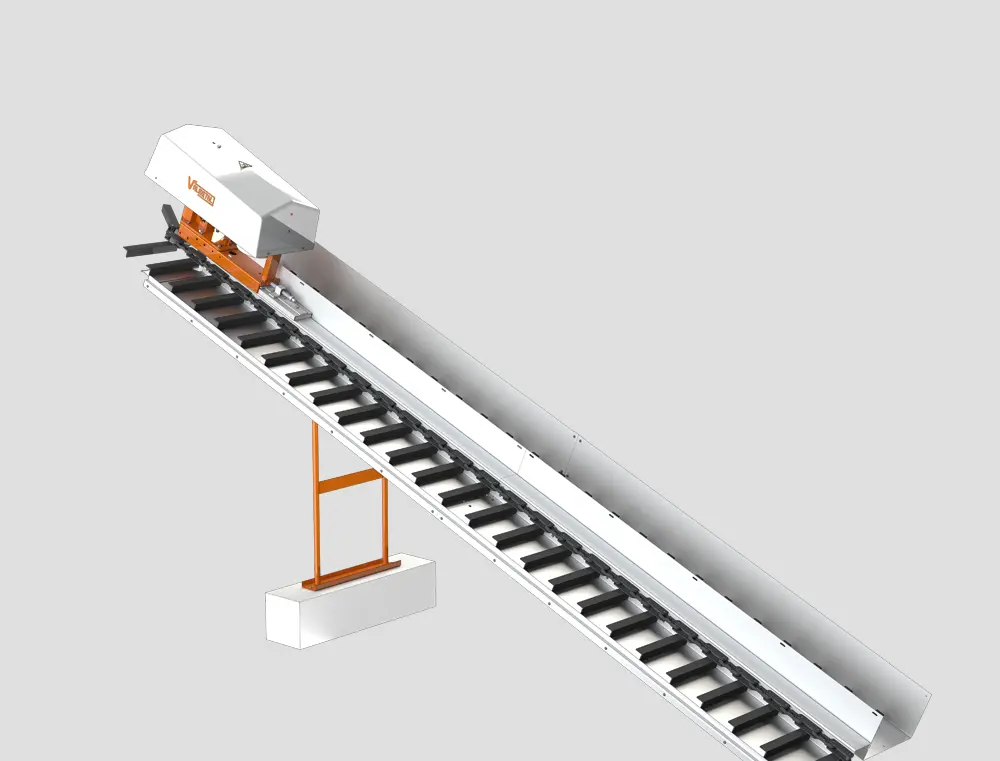

J-Series bolted elevators
For smaller systems, the Valmetal J-Series galvanized manure elevator may be right for you. The sections in this modular kit are assembled on site and are easy to replace if needed. These 4 ft & 9 ft (1.1 m & 2.7 m) sections may be configured as 9, 13, 18 or 22 ft (2.7, 4, 5.5 or 6.7 m) long elevators. Direct fit for J-700 drive unit, adapters available for other brands.
| Model | Type | Length |
| J-Series |
Galvanized fixed elevator | Up to 22’ (6.7 m) |
| B-Series 2000 | Fixed elevator | Up to 85’ (26.9 m) |
| B-Series 8800 | Swinging truss elevator | Up to 90’ (27.4 m) |
